HEAVY DUTY INDUSTRIAL CASTER

HOME > PRODUCT > HEAVY DUTY INDUSTRIAL CASTER

PU Wheel Pin Hole Heavy Duty Industrial Caster
Rigid Heavy Duty Industrial Caster
Total Brake Heavy Duty Industrial Caster
Side Locking Heavy Duty Industrial Caster
Steel Wheel Heavy Duty Industrial Caster
Heavy Duty Industrial Caster with PU Wheel
Rigid Heavy Duty Industrial Caster
Swivel Heavy Duty Industrial Caster
Dual Wheel Heavy Duty Industrial Caster

What Heavy Duty Industrial Caster Do We Have?

Tengcaster has been a industrial caster manufacturer in China for 24 years. We can provide heavy duty industrial caster with loading capacity from 200KGS to 3000KGS. There are many different models for your choice. They can be plastic wheel heavy duty caster, rubber wheel heavy duty caster, iron PU wheel heavy duty caster and pure steel wheel heavy duty caster. They can be with brake or without brake. The model without brake can be rigid or swivel; while the model with brake can be total brake heavy duty industrial caster and side locking heavy duty casters.

For heavy duty caster, the mounting method is normally top plate. If you need hole pin style or screw stem style, some of the models can measure up. The heavier the loading capacity required, the thicker the top plate and bracket will be. According to different loading capacity, our caster plate and bracket thickness various from 6mm to 12mm.

Our heavy duty industrial caster can be customized items. We can produce specific requirements casters for you, like special top plate, bracket, surface treatment, special wheel material and color…etc.

Specification for Typical Models

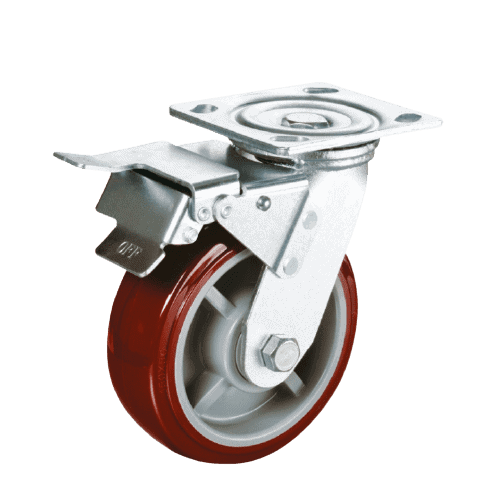

6 Inch Heavy Duty Industrial Caster with Side Locking

Model NO: 816A1ZDX608U

Specification:

Wheel Size: 150mm*50mm

Rim Material: Polyproplene

Tread Material: PU

Wheel: with double ball bearing

Overall Height: 195mm

Top Plate Size: 114*98mm

Hole Space Distance: 85*71mm

Loading Capacity: 350KGS

8 Inch Swivel Iron PU Wheel Heavy Duty Industrial Wheel

Model NO: 838S1ZDW805I

Specification:

Wheel Size: 200mm*50mm

Rim Material:  Iron Steel

Tread Material: high quality PU

Wheel: with double ball bearing

Overall height: 260mm

Top Plate Size: 150*110mm

Hole Space: 121*59/104*78mm

Loading Capacity: 2000KGS

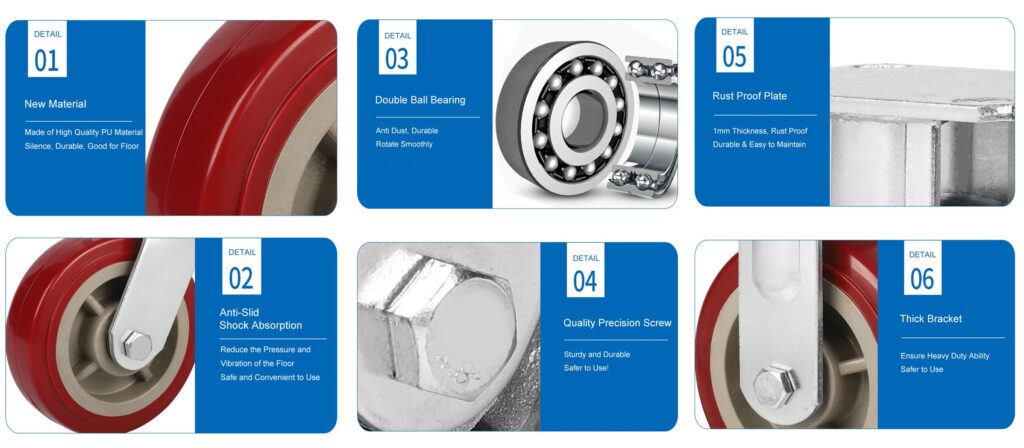

Focus on Details; Good Quality Ensured

Tengcaster has been a industrial caster manufacturer in China over 20 years. Good quality product is the foundation of our development. Details are very important for quality. We always pay much attention to every detail. We try to control each detail to be its best. In this way, good quality can be ensured; cost can be controlled to the lowest at the same time.

Strictly Quality Control & Product Test

All casters are manufactured under SOP direction; all casters are checked under strictly QC parameters; all casters are tested before shipments.

Process Quality Control Chart

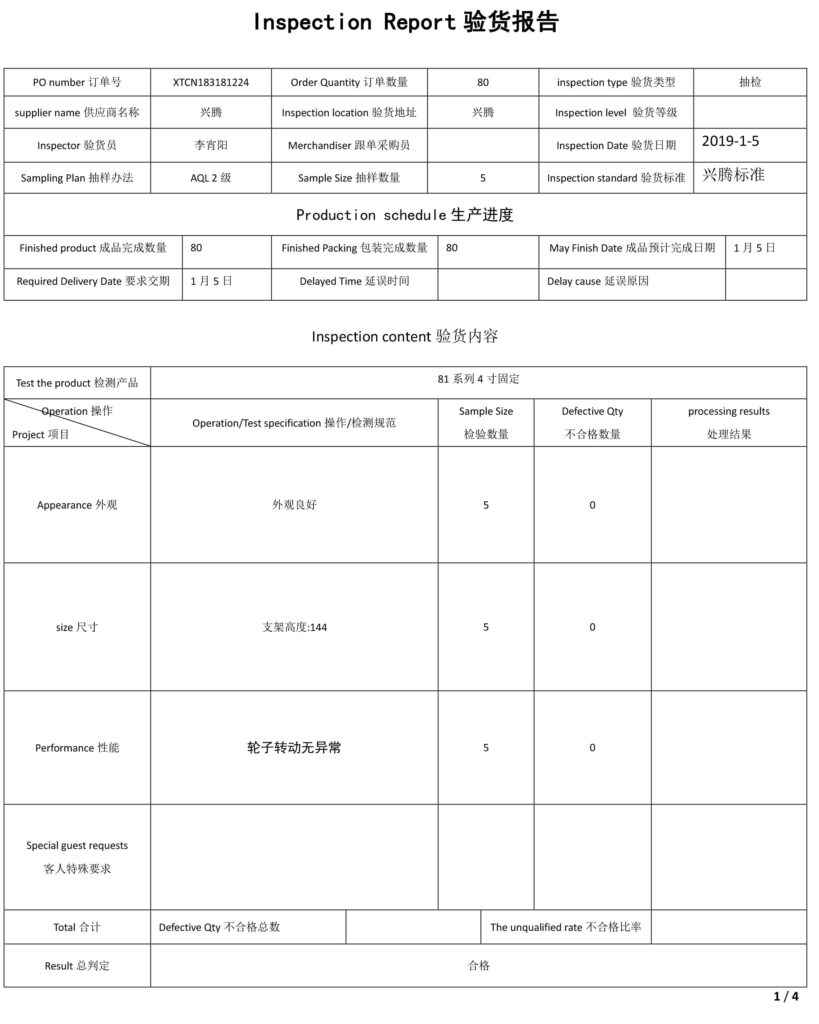

Inspection Report

We have manufactured casters and wheels for 24 years. Apart the heavy duty industrial casters, we can do other series casters, like shopping cart casters, furniture casters, medical casters and customized OEM caster. For now, there are nearly 3000 models of products for your choice. We can do any special casters according to your specific requirements as well. Low MOQ, low cost, high quality and in time delivery are the aims we always thrive for. And they are things we promise and do for our customers. If you have any question or interesting in casters, do pls contact us. We will provide you what you need.
